120mm led uv lamp uv dryer for inket printing China factory

Using high-power LED chips and special optical design, the ultraviolet light output is 9kw/cm2, and the intensity is twice that of the traditional mercury lamp, which greatly improves the production efficiency. The driving voltage of UV LED is 5-48V, which is far less than the 1 million volts of mercury lamps.

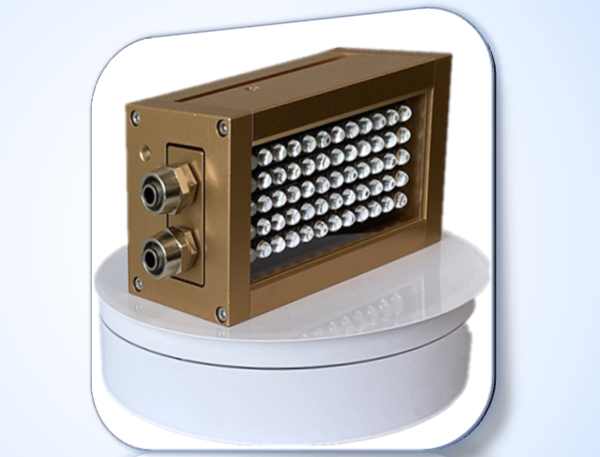

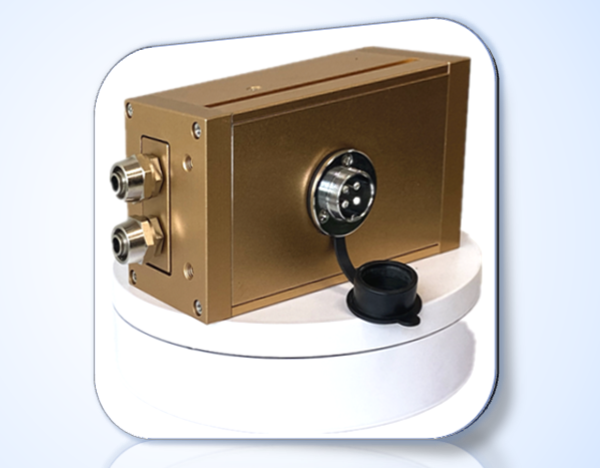

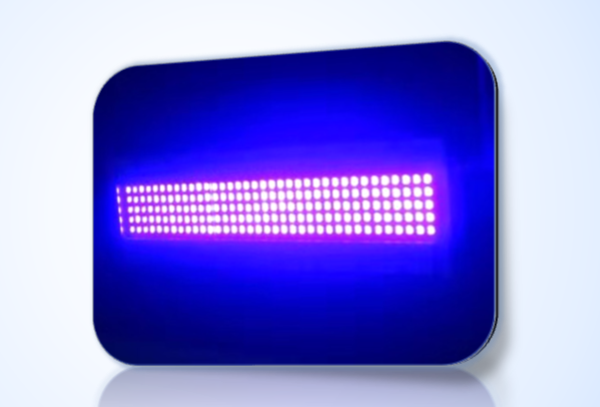

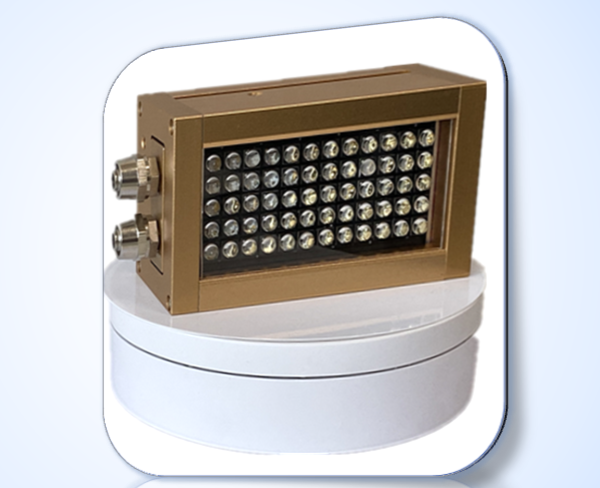

120mm led uv lamp uv dryer for inket printing China factory products led uv head

120mm led uv lamp uv dryer for inket printing China factory main technical parameters:

Working voltage: AC220V/50HZ
LED UV lamp: 900W , one main controller with two led uv lamps
Main peak of UV lamp band: 395nm
UV lamp adopts water cooling method
LED UV emitting surface: 120*27mm (length * width)
Lamp holder size: 120*52*60mm (length*width*height)
Chip: LG chip
Power regulation: 0%-100%
Optical power: 12W/CM2
With signal output terminal, it can be connected with customer equipment
Possess an alarm function for poor water flow
Dimensions of water cooler: 550*280*430mm(L*W*H)
Water cooler packaging size: 720*440*620mm (L*W*H)
Net weight: 30KG
Gross weight: 35KG
Water tank capacity: 6L

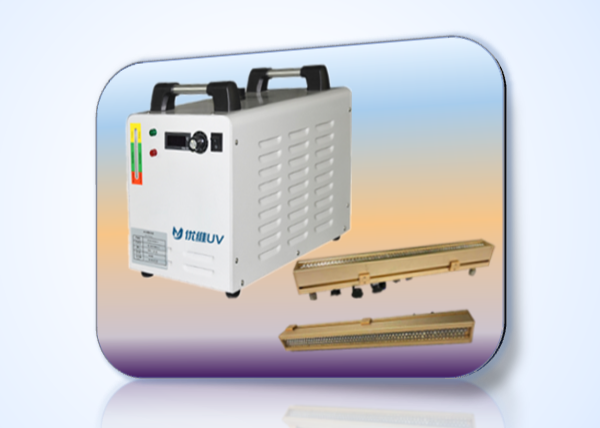

120mm led uv lamp uv dryer for inket printing China factory controller

120mm led uv lamp uv dryer for inket printing China factory item advantages:

 1, Cold light source ─ ─ small heat radiation, no infrared light, wide adaptability.
      2, Fast and efficient ─ ─ instant start, curing speed,  higher performance
      3, Long life - more than 30,000 hours;
      4, Instant switch - switch on at any time without preheating;
      5, Economy - instant switch, high production efficiency, low energy consumption
      6,  Environmental protection - no ozone discharge, mercury pollution;
      7, Safety - no shortwave, low voltage, cold light source;
      8, Easy to operate ─ ─ easy to use simple, low operating costs.
      9, Electricity cost saving—80% saving comparing to traditional mercury lamp.
    10, Remote controlling——Smart PLC controlling system .
    11, Low VOC
