Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press Satement

1.LED UV lamp beads are South Korea’s LG/Seoul brand, strictly implementing the industry’s international standards, using the best thermal conductivity material AIN, pure gold wire all inorganic quartz packaging.

2. The best arrangement of LED UV lamp bead matrix can combine long and short light waves to achieve a perfect curing effect on the surface and deep layers, low energy consumption, high energy curing, and the energy required by the printing equipment can be reached instantly when the lamp is turned on.

3. The outer shell of the LED UV irradiation head is made of superconducting aluminum alloy, combined with an advanced frequency conversion water circulation cooling system, which not only saves energy, but also better protects the LED chip and prolongs the lamp life (15000-18000hour).

4. Using world-brand DC power supply to drive the LED module, real-time monitoring of the current output of the LED and the temperature of the led uv lamp holder, the performance is better and more stable.

5. The line light source irradiation head is independently developed by our company and obtained the national invention patent.

6. LED UV Chips LG/Seoul Brand, Power suppliy MeanWell brand.

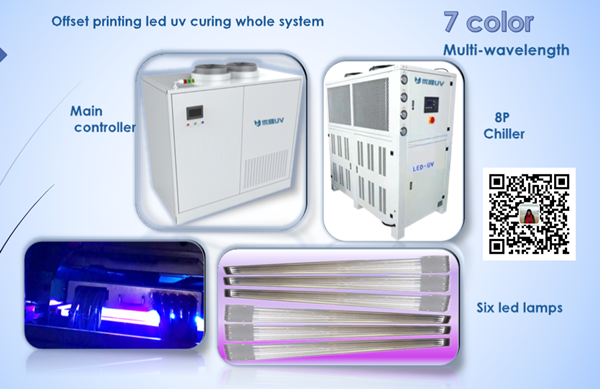

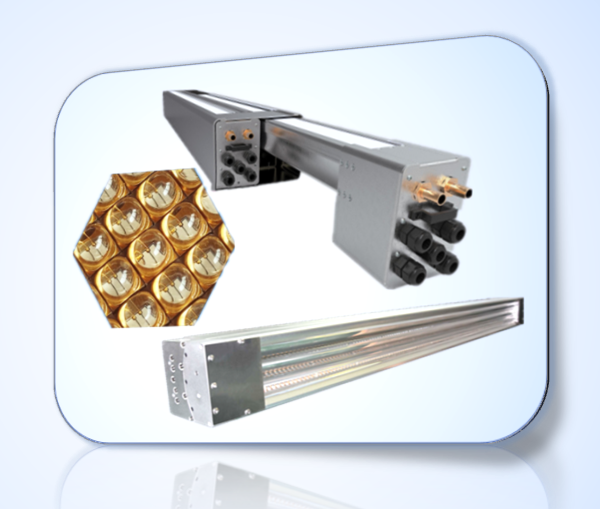

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press Satement whole system

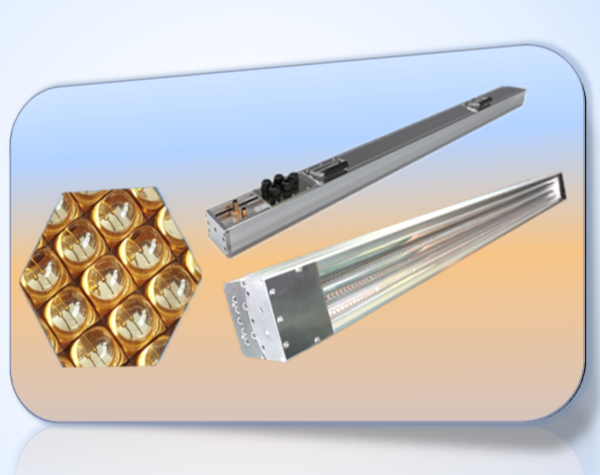

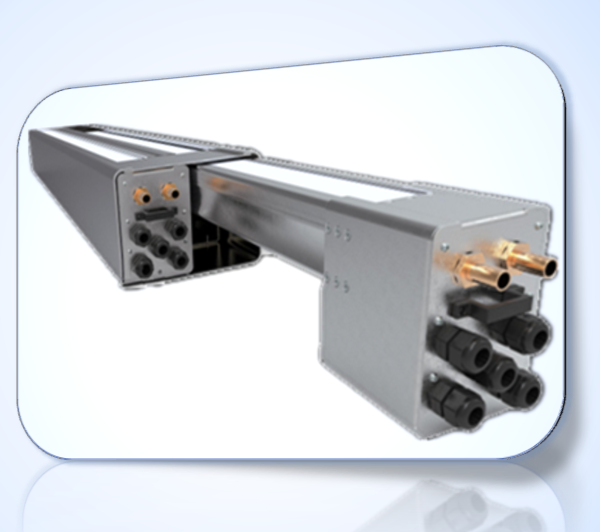

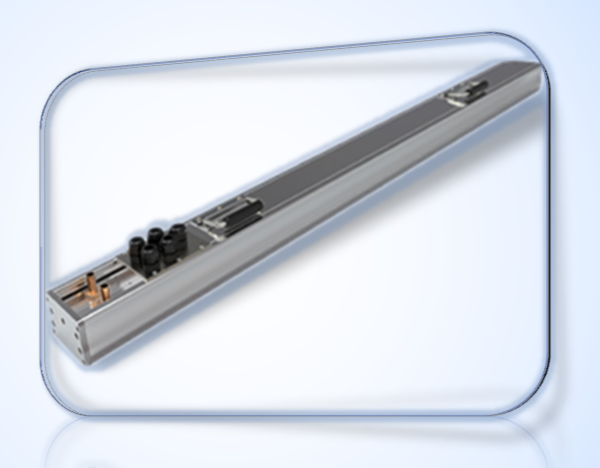

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press Lamp statement

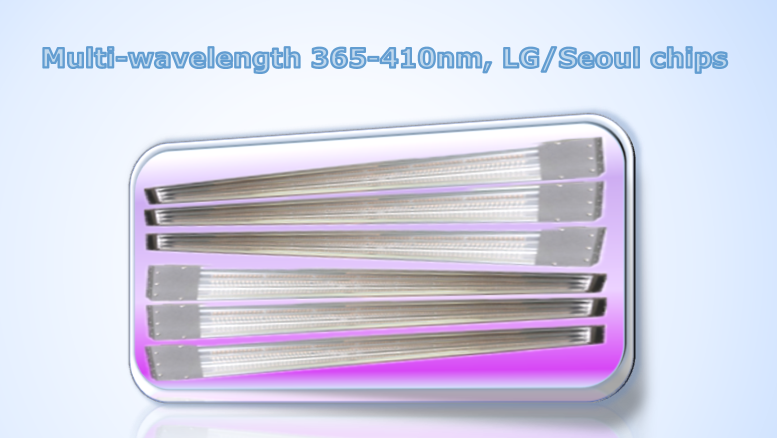

Led uv light Wavelength: 325-405nm,

Fast Curing LED UV Electric power: 8.6KW

Led uv curing machine Service life: up to 25000 hous, light decay is more than 35%, power consumption is reduced, energy saving is 80%, and operating cost is saved up to 70%.

Led uv curing system Cooling method: water-cooled internal circulation (about 25degree)

Led uv Light emitting form: surface light source

Led uv Curing Energy intensity: 7000-10000mw/cm2 (395nm).

LED UV Light Wavelength: 325-405nm,

Led uv lamp Electric power: 7.2KW
Led uv machine Service life: up to 25000 hous, light decay is more than 35%, power consumption is reduced, energy saving is 80%, and operating cost is saved up to 70%.
LED UV Curing system Cooling method: water-cooled internal circulation (about 25degree)
LED UV Light emitting form: Concentrating micro arc arc ray source
LED UV Light Energy intensity: 12000-18000mw/cm2 (395nm)

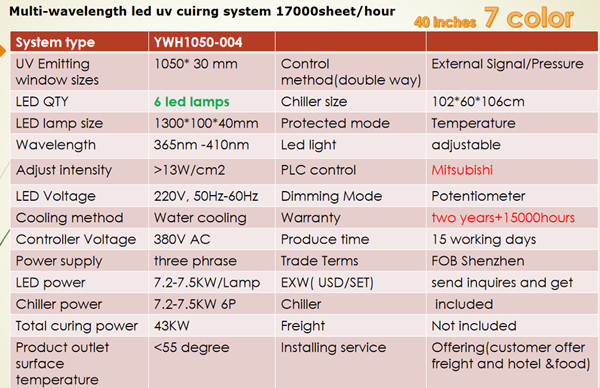

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press technology parameters

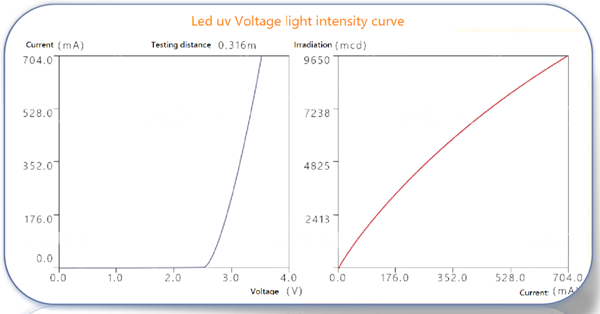

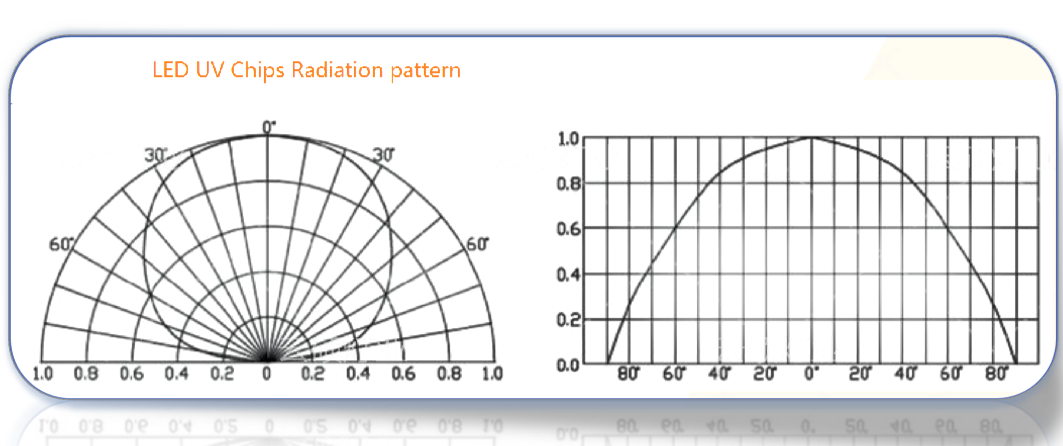

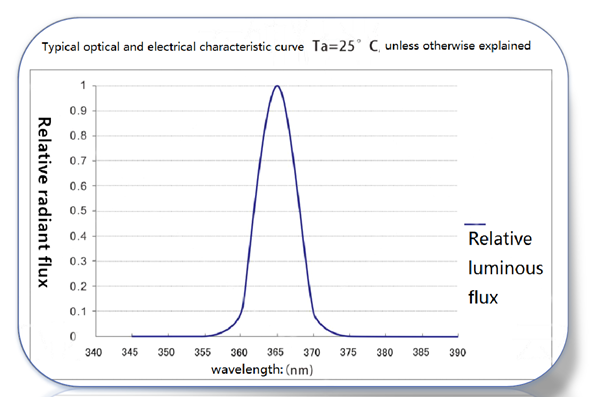

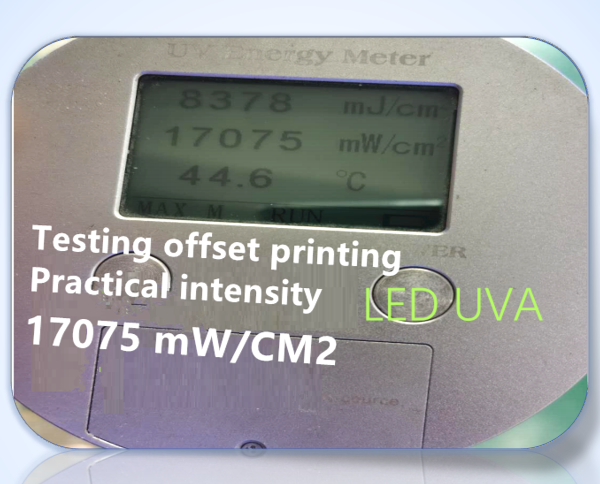

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press led uv light in practical measurement data

Led uv Multi-wavelength System Offset Printing Sheetfed Press application advantages:

1. Led uv Light source: small size, cold light source, no thermal radiation, low temperature of the illuminated object (temperature rise below 5 degrees Celsius)
2. Fast Curing Led uv System Switching time: No need to preheat, switch instantly, switch back instantly after shutdown, response time is milliseconds.
3. LED UV curing efficiency: narrow spectrum, single band, single band energy is highly concentrated, curing time is millisecond level.
4.LED UV curing efficiency: low temperature (normal temperature), the irradiated object is not prone to overheating deformation.
5. Energy consumption: 98% of the LED UV light output is ultraviolet light, and the energy is concentrated.
6. Led uv multi-wavelength system Power consumption: power consumption is only 0-30% of traditional mercury lamps.
7. LED UV System Environmental protection and health: no mercury, no infrared rays, no damage to the machine, no VOC emission, 100% environmental protection.
8. Led UV Curing Life: more than 10,000 hours, even as long as 50,000 hours, the number of switches does not affect the life.
9. Led UV Light Irradiation area: The size can be customized, the number of lamp beads can be selected, and various lamp arrays can be formed at will.

10. This LED UV Multi-Wavelength System 100% drying due to Multi-chips and lense function.

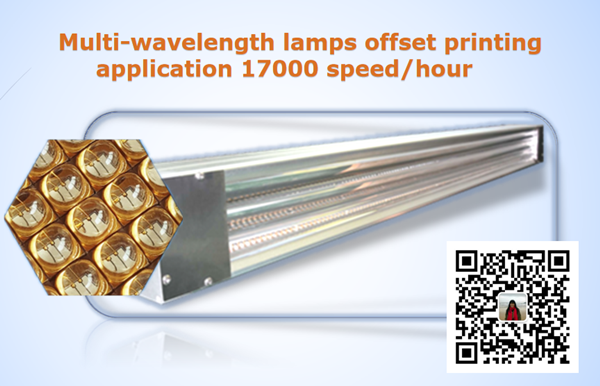

11. This LED UV Multi-Wavelength System support offset machine running speed : 17000 sheet/hour even more than it.
12. Led uv curing machine Maintenance cost: The maintenance cost is almost zero within 2 years.

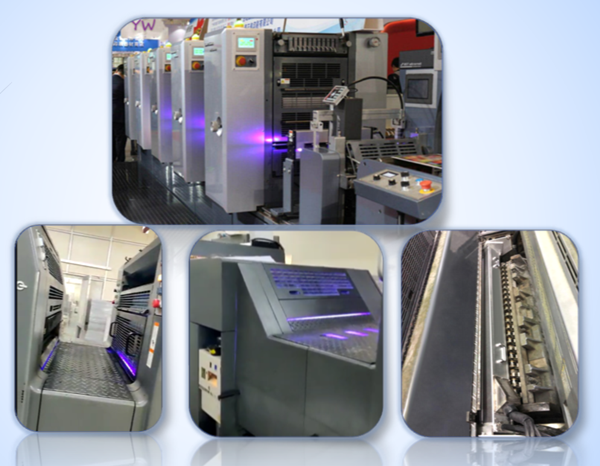

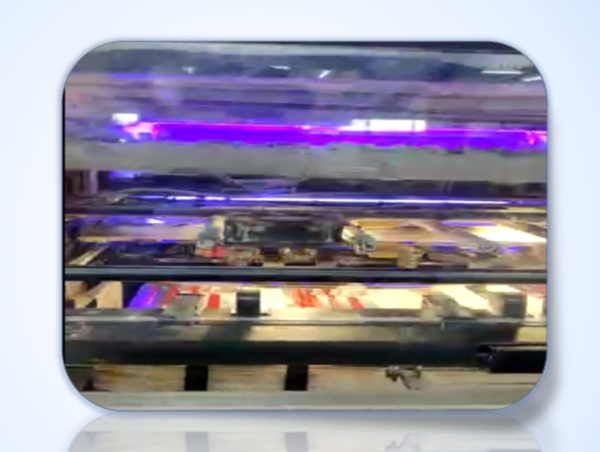

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press System in practical application Picture

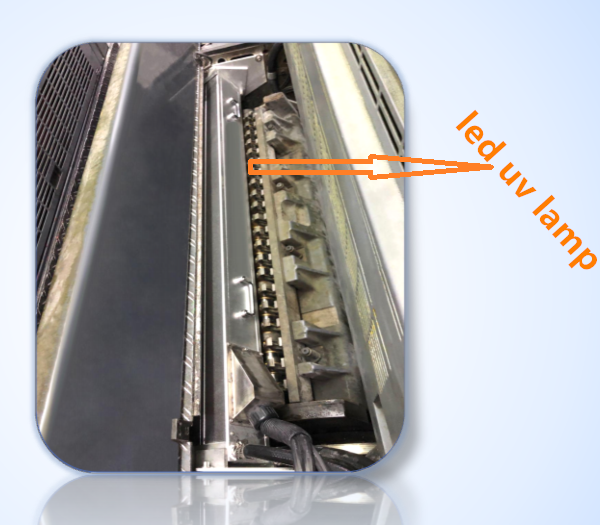

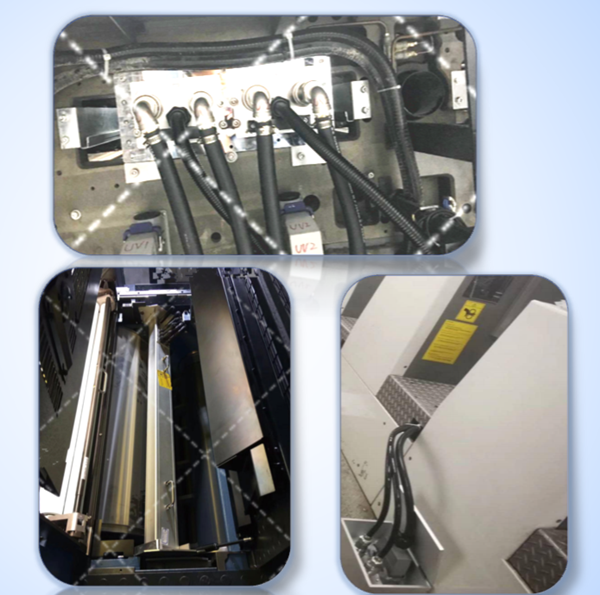

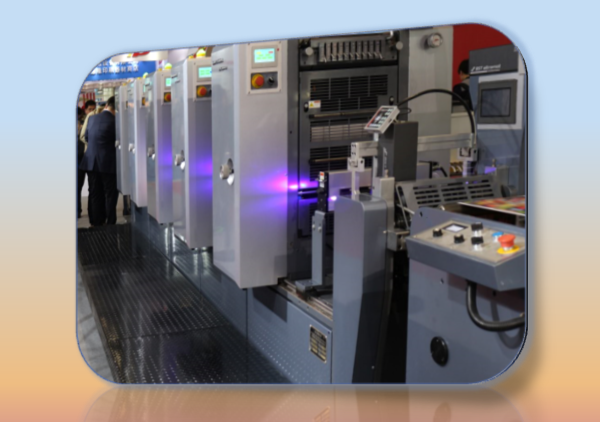

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press installing

Fast Curing LED UV Multi-Wavelength Offset Printing Sheetfed Press application field

Heidelberg / Roland /KBA / Komori Offset Printing  ect.

LED UV Curing System safety protection measures;
1. The company's LEDUV curing system has passed the EU CE certification, and its safety has been well guaranteed. All system failures have alarm protection functions.
2. The circulating liquid flow of the lamp body, the water temperature is automatically adjusted, and the applause detection alarm protection.
3. Automatic protection for over-temperature of light box.
4. Cooling circulation system failure protection.
5. Dimming system failure protection.
6. The LED lamp holder applauds automatic alarm protection, and the system includes power online detection, LED lamp display and prompt function, which avoids the consequences of a large number of printing wastes due to aging and not replaced in time.
7. LED electronic control system failure alarm.
8. PLC fault alarm.
